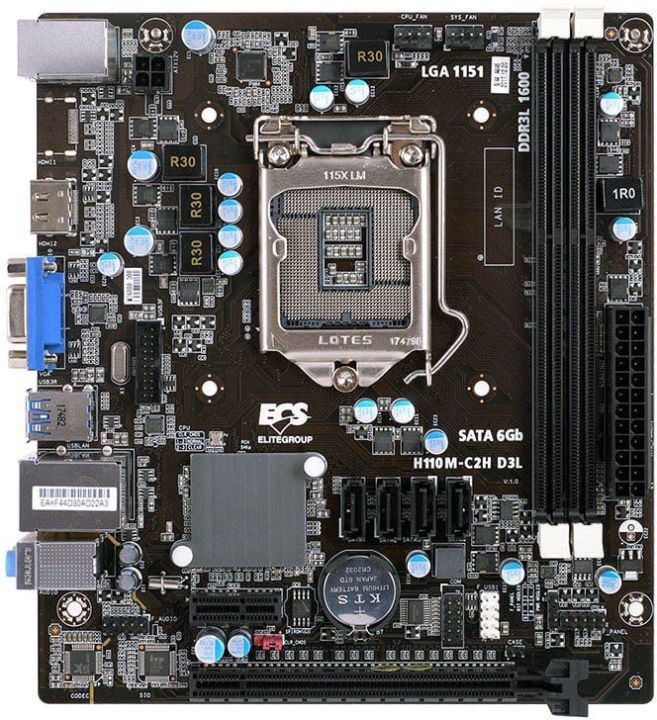

H110M4 6/7TH GEN Motherboard – 2 RAM SLOT

Supported CPU
CPU SOCKET TYPE   LGA 1151
CPU TYPE  Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
SUPPORTED CPU TECHNOLOGIES  * Not Compatible with Intel 8th Gen CPUs
Chipsets
CHIPSET   Intel H110
Onboard Video
ONBOARD VIDEO CHIPSET   Integrated Graphics Processor – Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
Maximum shared memory of 1GB
Memory
NUMBER OF MEMORY SLOTS  2x288pin (DDR4)
MEMORY STANDARD  DDR4 2400/ 2133
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.
MAXIMUM MEMORY SUPPORTED  32GB
CHANNEL SUPPORTED   Dual Channel
Expansion Slots
PCI EXPRESS 3.0 X16  1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
PCI EXPRESS X1  5 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Devices
SATA 6GB/S   4 x SATA 6Gb/s connectors
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
M.2  1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)
Onboard Audio
AUDIO CHIPSET   Realtek ALC887
AUDIO CHANNELS   2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Onboard LAN
LAN CHIPSET  Realtek GbE LAN chip
MAX LAN SPEED  1Gbps
Rear Panel Ports
PS/2   1 x PS/2 mouse port
1 x PS/2 Keyboard port
VIDEO PORTS  1 x D-Sub port
RJ45  1 x RJ45
USB 3.1  2 x USB 3.1 Gen 1 ports
USB 1.1/2.0  2 x USB 2.0/1.1 ports
AUDIO PORTS  3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Connectors
ONBOARD USB  1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
OTHER CONNECTORS  2 x PCIe power connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper
Physical Spec
FORM FACTOR  ATX
DIMENSIONS (W X L)  12.0″ x 7.5″
POWER PIN  1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
FEATURES  I/O Controller: iTE I/O Controller Chip
H/W Monitoring:
– Voltage detection
– Temperature detection
– Fan speed detection
– Overheating warning
– Fan fail warning
– Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
– 2 x 64 Mbit flash
– Use of licensed AMI UEFI BIOS
– Support for DualBIOS
– PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
– Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Fast Boot
ON/OFF Charge
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
– Support for Q-Flash
– Support for Xpress Install

Bundle Software:
– Norton Internet Security (OEM version)
– cFosSpeed

Operating System:
– Windows 10 64-bit (for 7th Generation Intel Processors)
– Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bit (for 6th Generation Intel Processors)
